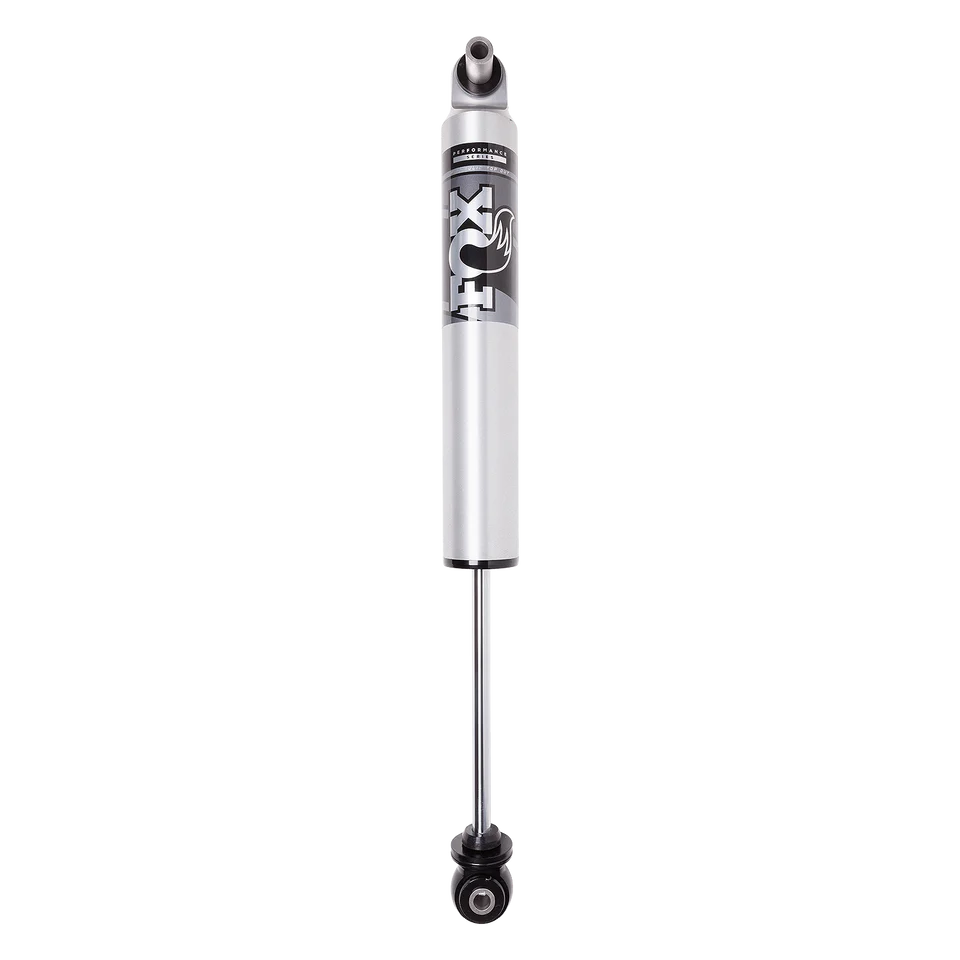

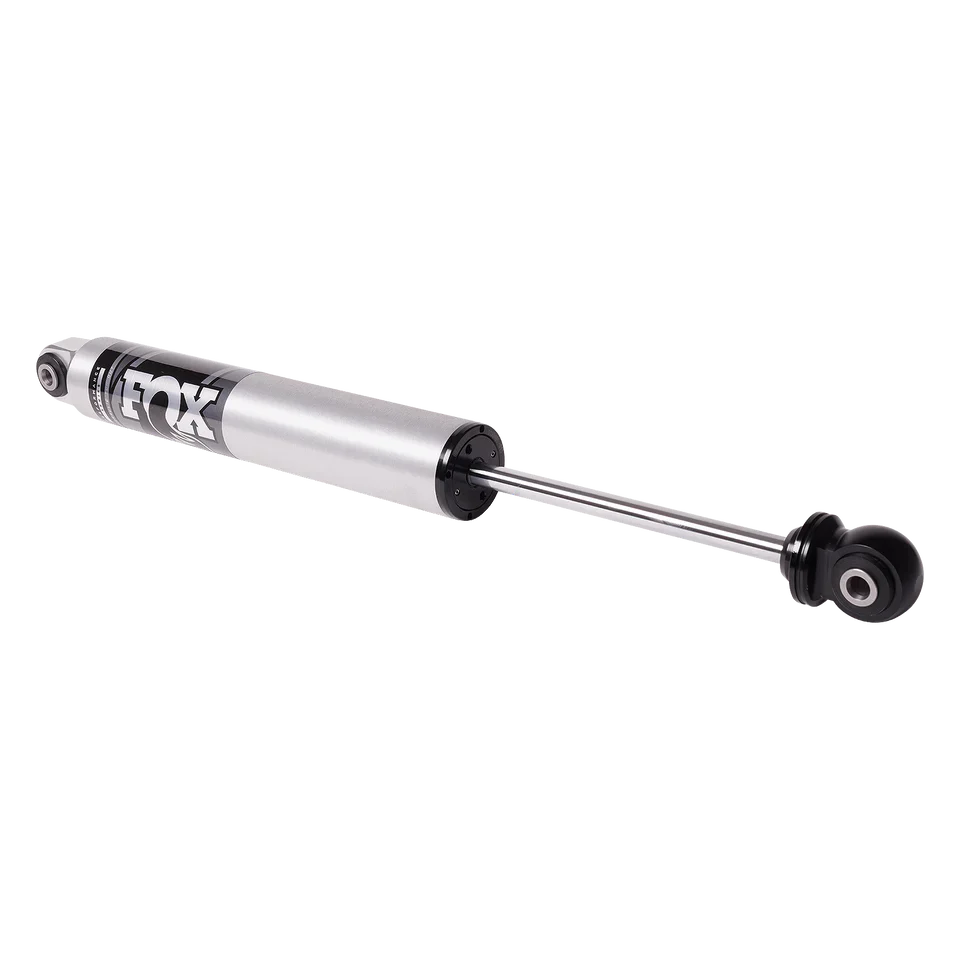

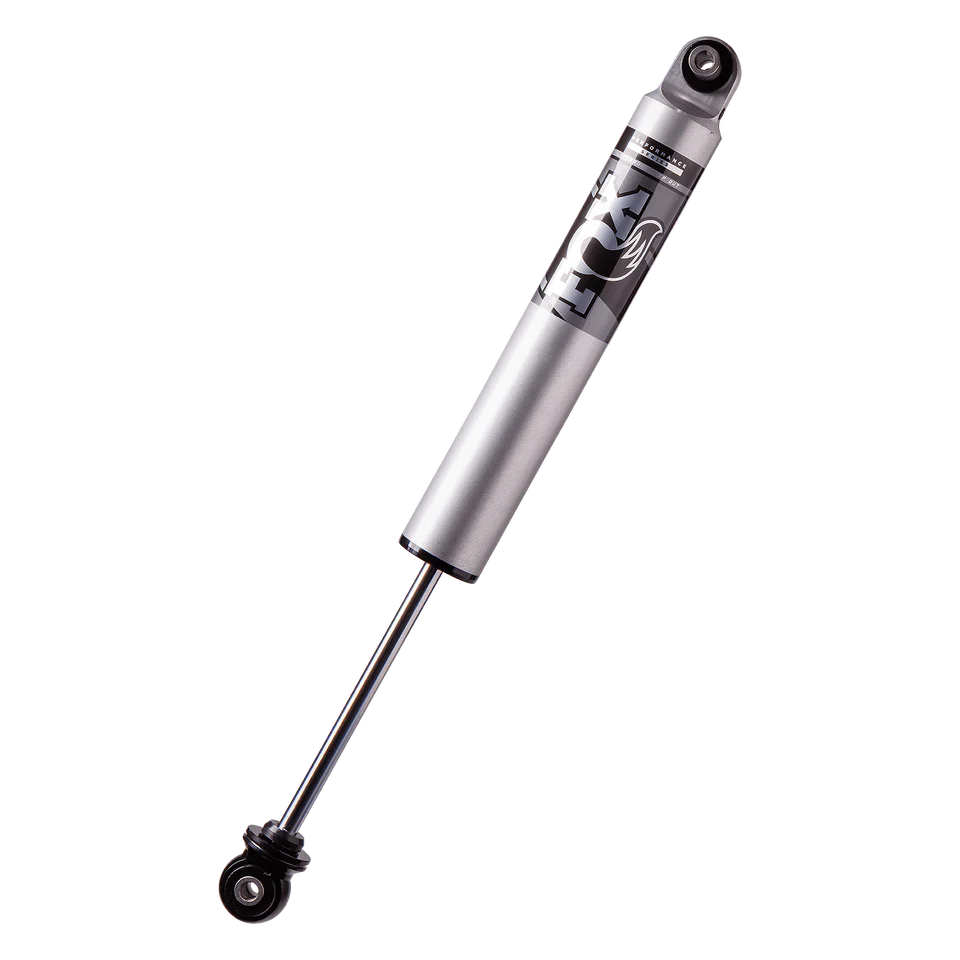

Fox | 2017-2024 Ford F250 / F350 4WD Performance Series 2.5 Smooth Body IFP HTO Front Shock | 6-8 Inch Lift
FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.
Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.
Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
NOTE: Sold Individually.
| PART NUMBER | 987-24-022 |
| FEATURES | 2.5” Impact extruded 6061-T6 aluminum shock body Type II clear-anodized body plating High-flow velocity-sensitive damping 5/8” hard chrome shaft Internal floating piston (IFP) Hydraulic Top Out (HTO) piston |
| TRAVEL | 10.18 |
| FRONT LIFT HEIGHT | 6.8" |
| EXTENDED LENGTH | 28.49 |
| COMPRESSED LENGTH | 18.31 |
| TOP MOUNT | Stem |
| BOTTOM MOUNT | Eyelet |
| FITMENT NOTES | Lift: 6-8 inches |
FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.
Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.
Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
NOTE: Sold Individually.
| PART NUMBER | 987-24-022 |
| FEATURES | 2.5” Impact extruded 6061-T6 aluminum shock body Type II clear-anodized body plating High-flow velocity-sensitive damping 5/8” hard chrome shaft Internal floating piston (IFP) Hydraulic Top Out (HTO) piston |
| TRAVEL | 10.18 |
| FRONT LIFT HEIGHT | 6.8" |
| EXTENDED LENGTH | 28.49 |
| COMPRESSED LENGTH | 18.31 |
| TOP MOUNT | Stem |
| BOTTOM MOUNT | Eyelet |
| FITMENT NOTES | Lift: 6-8 inches |
