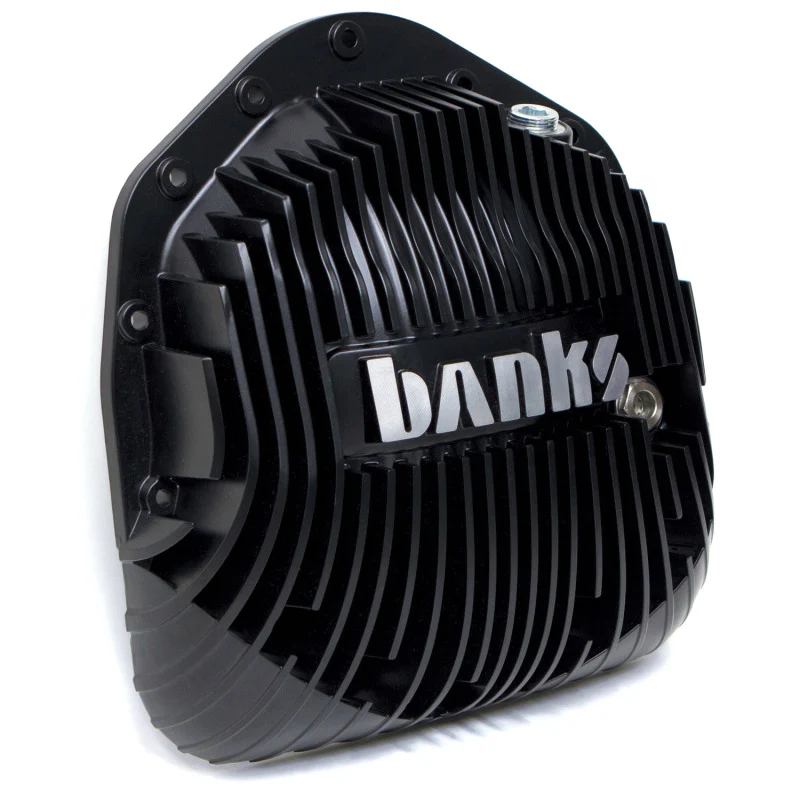

Banks Power | 2001-2019 GM / 2003-2018 Dodge Ram Differential Cover Kit 11.5 / 11.8-14 Bolt - Black Ops
Banks Ram-AirĀ®Ā differential cover extends lubrication life and retains fuel economy. Thanks to its superior fluid and aerodynamics, the Ram-AirĀ®Ā Cover out-performs stock and flat-back high-capacity covers and does so with less lubricant. Increased distance between service intervals and less lubricant means you'll save money while extending gear life.
DoesĀ NOTĀ fit 2019+ Ram 6.7L Diesel.
Sway Bar Spacers (CLICK HERE) required on Ram Trucks with OEM sway bar.
Key Features
Key Highlights
-
New patented design features Ram-Air scoops for fastest cooling
- Provides cold high velocity air, overcoming ādead air zoneā behind differential
- Scoops force air up and into massive heat radiation fins
- Engineered to break-away if snagged on an obstacle
- Banks coolsĀ 5X betterĀ than flat-back covers in on-road towing testsĀ over the same road, same weather, operator and vehicle
- CoolsĀ 118% betterĀ than flat-backs in 200hp 60mph sustained tests
- Dry-mount high-pressure silicone O-ring seal.Ā No messy RTV clean!
- Internal fins transfer heat through the cover into the external fins
- Clears spare tire heat shield, Panhard bars and other components
- Does not sacrifice any ground clearance
- Limited Lifetime Warranty
- Axle tube lubricant guides directs lube to bearings w/o overfilling
- Cover mates flush with differential housing for smooth fluid flow
- Ring gear raceway controls fluid flow to the pinion and bearings
- Low fluid aeration means longer fluid life
- Weight: 11.7 lbs
- External heat radiation fin count: 24
- Internal heat absorption fin count: 26
- Dimensions: 14.2 in X 13.3 in X 3.8 in
- External heat radiation fin surface area: 533.782 in2
- Internal heat absorption fin surface area: 119.882 in2
- External heat radiation total surface area: 808.81 in2
- Internal heat absorption total surface area: 215.78 in2
- Fasteners: 14 x stainless steel M8-1.25 flange hex bolts
- Material: A380 aluminum diecast with CNC machined surfaces
- Internal Volume: About 4.0 QtsĀ (Check OEM Owners Manual)
- Magnetic drain plug
- Magnetic fill port plug
- 20Ā° angled fill port for easy access
- No need to remove cover to change fluid

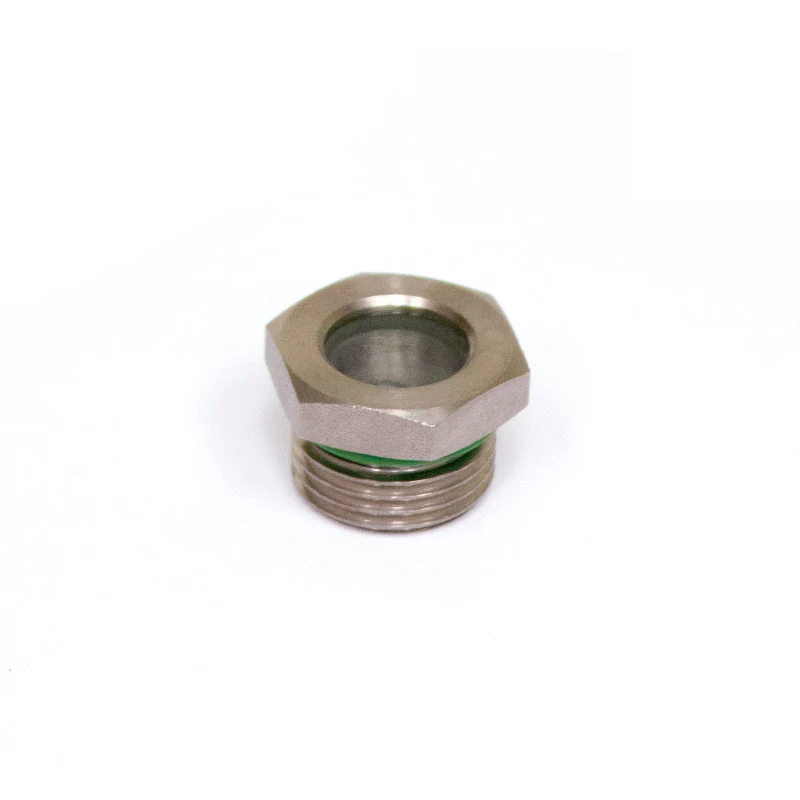

- 1/2 in sight glass with contrast screen (visual aid) and Viton seal
- Banks recommends Amsoil 75W-90 Severe Gear Synthetic Gear Lube
- Fill level depends on model year:Ā (About 4.0Qts Fill To OEM Level)
Banks Ram-AirĀ®Ā differential cover extends lubrication life and retains fuel economy. Thanks to its superior fluid and aerodynamics, the Ram-AirĀ®Ā Cover out-performs stock and flat-back high-capacity covers and does so with less lubricant. Increased distance between service intervals and less lubricant means you'll save money while extending gear life.
DoesĀ NOTĀ fit 2019+ Ram 6.7L Diesel.
Sway Bar Spacers (CLICK HERE) required on Ram Trucks with OEM sway bar.
Key Features
Key Highlights
-
New patented design features Ram-Air scoops for fastest cooling
- Provides cold high velocity air, overcoming ādead air zoneā behind differential
- Scoops force air up and into massive heat radiation fins
- Engineered to break-away if snagged on an obstacle
- Banks coolsĀ 5X betterĀ than flat-back covers in on-road towing testsĀ over the same road, same weather, operator and vehicle
- CoolsĀ 118% betterĀ than flat-backs in 200hp 60mph sustained tests
- Dry-mount high-pressure silicone O-ring seal.Ā No messy RTV clean!
- Internal fins transfer heat through the cover into the external fins
- Clears spare tire heat shield, Panhard bars and other components
- Does not sacrifice any ground clearance
- Limited Lifetime Warranty
- Axle tube lubricant guides directs lube to bearings w/o overfilling
- Cover mates flush with differential housing for smooth fluid flow
- Ring gear raceway controls fluid flow to the pinion and bearings
- Low fluid aeration means longer fluid life
- Weight: 11.7 lbs
- External heat radiation fin count: 24
- Internal heat absorption fin count: 26
- Dimensions: 14.2 in X 13.3 in X 3.8 in
- External heat radiation fin surface area: 533.782 in2
- Internal heat absorption fin surface area: 119.882 in2
- External heat radiation total surface area: 808.81 in2
- Internal heat absorption total surface area: 215.78 in2
- Fasteners: 14 x stainless steel M8-1.25 flange hex bolts
- Material: A380 aluminum diecast with CNC machined surfaces
- Internal Volume: About 4.0 QtsĀ (Check OEM Owners Manual)
- Magnetic drain plug
- Magnetic fill port plug
- 20Ā° angled fill port for easy access
- No need to remove cover to change fluid
- 1/2 in sight glass with contrast screen (visual aid) and Viton seal
- Banks recommends Amsoil 75W-90 Severe Gear Synthetic Gear Lube
- Fill level depends on model year:Ā (About 4.0Qts Fill To OEM Level)
Original: $395.00
-65%$395.00
$138.25Description
Banks Ram-AirĀ®Ā differential cover extends lubrication life and retains fuel economy. Thanks to its superior fluid and aerodynamics, the Ram-AirĀ®Ā Cover out-performs stock and flat-back high-capacity covers and does so with less lubricant. Increased distance between service intervals and less lubricant means you'll save money while extending gear life.
DoesĀ NOTĀ fit 2019+ Ram 6.7L Diesel.
Sway Bar Spacers (CLICK HERE) required on Ram Trucks with OEM sway bar.
Key Features
Key Highlights
-
New patented design features Ram-Air scoops for fastest cooling
- Provides cold high velocity air, overcoming ādead air zoneā behind differential
- Scoops force air up and into massive heat radiation fins
- Engineered to break-away if snagged on an obstacle
- Banks coolsĀ 5X betterĀ than flat-back covers in on-road towing testsĀ over the same road, same weather, operator and vehicle
- CoolsĀ 118% betterĀ than flat-backs in 200hp 60mph sustained tests
- Dry-mount high-pressure silicone O-ring seal.Ā No messy RTV clean!
- Internal fins transfer heat through the cover into the external fins
- Clears spare tire heat shield, Panhard bars and other components
- Does not sacrifice any ground clearance
- Limited Lifetime Warranty
- Axle tube lubricant guides directs lube to bearings w/o overfilling
- Cover mates flush with differential housing for smooth fluid flow
- Ring gear raceway controls fluid flow to the pinion and bearings
- Low fluid aeration means longer fluid life
- Weight: 11.7 lbs
- External heat radiation fin count: 24
- Internal heat absorption fin count: 26
- Dimensions: 14.2 in X 13.3 in X 3.8 in
- External heat radiation fin surface area: 533.782 in2
- Internal heat absorption fin surface area: 119.882 in2
- External heat radiation total surface area: 808.81 in2
- Internal heat absorption total surface area: 215.78 in2
- Fasteners: 14 x stainless steel M8-1.25 flange hex bolts
- Material: A380 aluminum diecast with CNC machined surfaces
- Internal Volume: About 4.0 QtsĀ (Check OEM Owners Manual)
- Magnetic drain plug
- Magnetic fill port plug
- 20Ā° angled fill port for easy access
- No need to remove cover to change fluid
- 1/2 in sight glass with contrast screen (visual aid) and Viton seal
- Banks recommends Amsoil 75W-90 Severe Gear Synthetic Gear Lube
- Fill level depends on model year:Ā (About 4.0Qts Fill To OEM Level)
