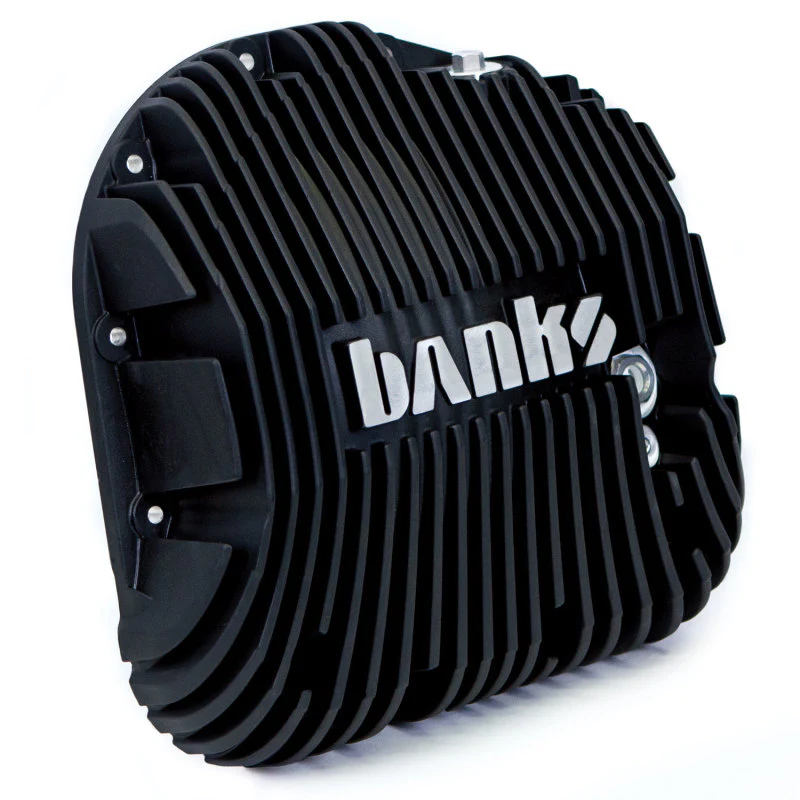

Banks Ram-Air® differential cover extends lubrication life and retains fuel economy. Thanks to its superior fluid and aerodynamics, the Ram-Air® Cover out-performs stock and flat-back high-capacity covers and does so with less lubricant. Increased distance between service intervals and less lubricant means you'll save money while extending gear life.

Key Features

• New patented design features Ram-Air scoops for fastest cooling

• Provides cold high velocity air, overcoming “dead air zone” behind differential

• Scoops force air up and into massive heat radiation fins

• Engineered to break-away if snagged on an obstacle

• Banks cools 5X better than flat-back covers in on-road towing tests over the same road, same weather, operator and vehicle

• Cools 118% better than flat-backs in 200hp 60mph sustained tests

• Dry-mount high-pressure silicone O-ring seal. No messy RTV clean!

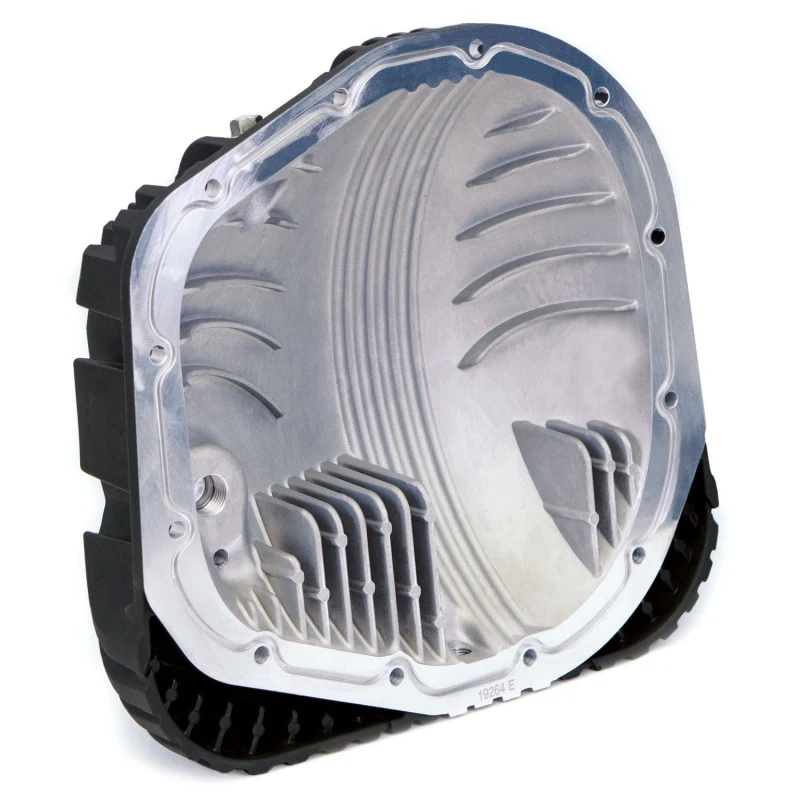

• Internal fins transfer heat through the cover into the external fins

• Clears spare tire heat shield, Panhard bars and other components

• Does not sacrifice any ground clearance

• Limited Lifetime Warranty


Fluid Dynamics

• Axle tube lubricant guides directs lube to bearings w/o overfilling

• Cover mates flush with differential housing for smooth fluid flow

• Ring gear raceway controls fluid flow to the pinion and bearings

• Low fluid aeration means longer fluid life


Technical Specs

• Weight: 11.7 lbs

• External heat radiation fin count: 23

• Internal heat absorption fin count: 22

• Dimensions: 13.3 in X 12.8 in X 3.5 in

• External heat radiation fin surface area: 694.2 in2

• Internal heat absorption fin surface area: 103.1 in2

• External heat radiation total surface area: 741.9 in2

• Internal heat absorption total surface area: 222.2 in2

• Fasteners: 12 x stainless steel 5/16 flange hex bolts

• Material: A380 aluminum diecast with CNC machined surfaces

• Internal Volume: About 3.3-3.6 Qts (Check OEM Owners Manual)


Oil Service

• Magnetic drain plug

• Magnetic fill port plug

• 20° angled fill port for easy access

• No need to remove cover to change fluid

• 1/2 in sight glass with contrast screen (visual aid) and Viton seal

• Banks recommends Amsoil 75W-90 Severe Gear Synthetic Gear Lube

• Fill level depends on model year: (About 4.0Qts Fill To OEM Level)
