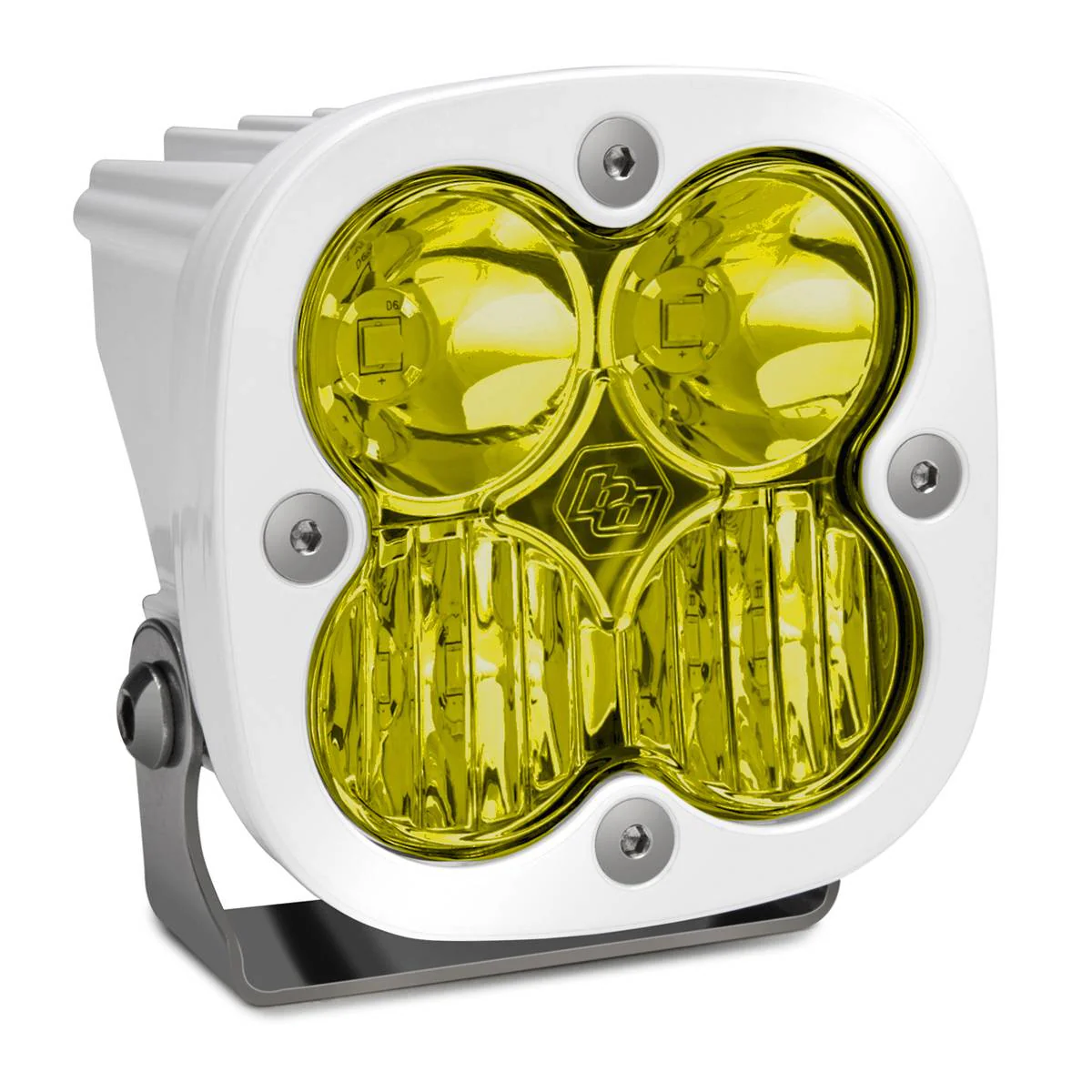

Although similar in aesthetics to the Squadron® Pro, the application for the Sport varies. The Squadron® Sport utilizes 4 LEDs producing an impressive 3,150 lumens at 26 watts making it ideal for near field, side/backup and scene lighting application. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

Baja Designs Features:  Satisfactions Guarantee –30 Day Money Back  Guarantee  Limited Lifetime Warranty– Complete Purchase Protection  uService®– Replaceable Lenses And Optics  ClearView®– All The Light, Right Where You Need It.  MoistureBlock™– Waterproof, Rain Proof, Submersible  CopperDrive®– Only LED Driven At 100%  5000K Daylight– Less Driver Fatigue, Natural Color

Specifications:  Lumens: 3,150 Utilizing 4 LEDs  Wattage/Amps:26W / 2A  Dimensions: 3.07" x 2.77" x 3.07"  Weight: 12 ounces  LED Life Expectancy: 49,930 Hours  Front Lens: Hard Coated Polycarbonate  Housing: Powder Coated Cast Aluminum  Bezel: Billet Machined Aluminum  Hardware & Bracket Material: Stainless Steel  Exceeds MIL-STD810G (Mil-Spec Testing)  Built-In Overvoltage Protection  IP69K (Waterproof, Submersible to 9ft)  IK10 Compliant (Mechanical Impact Testing)

Please note that this light does NOT include a harness and the applicable harness to this light is 640117


Includes:

• Squadron® Sport LED Light

• Mounting Bracket


Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Work/Scene: Excellent work light or “scene light” with an extremely smooth120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
