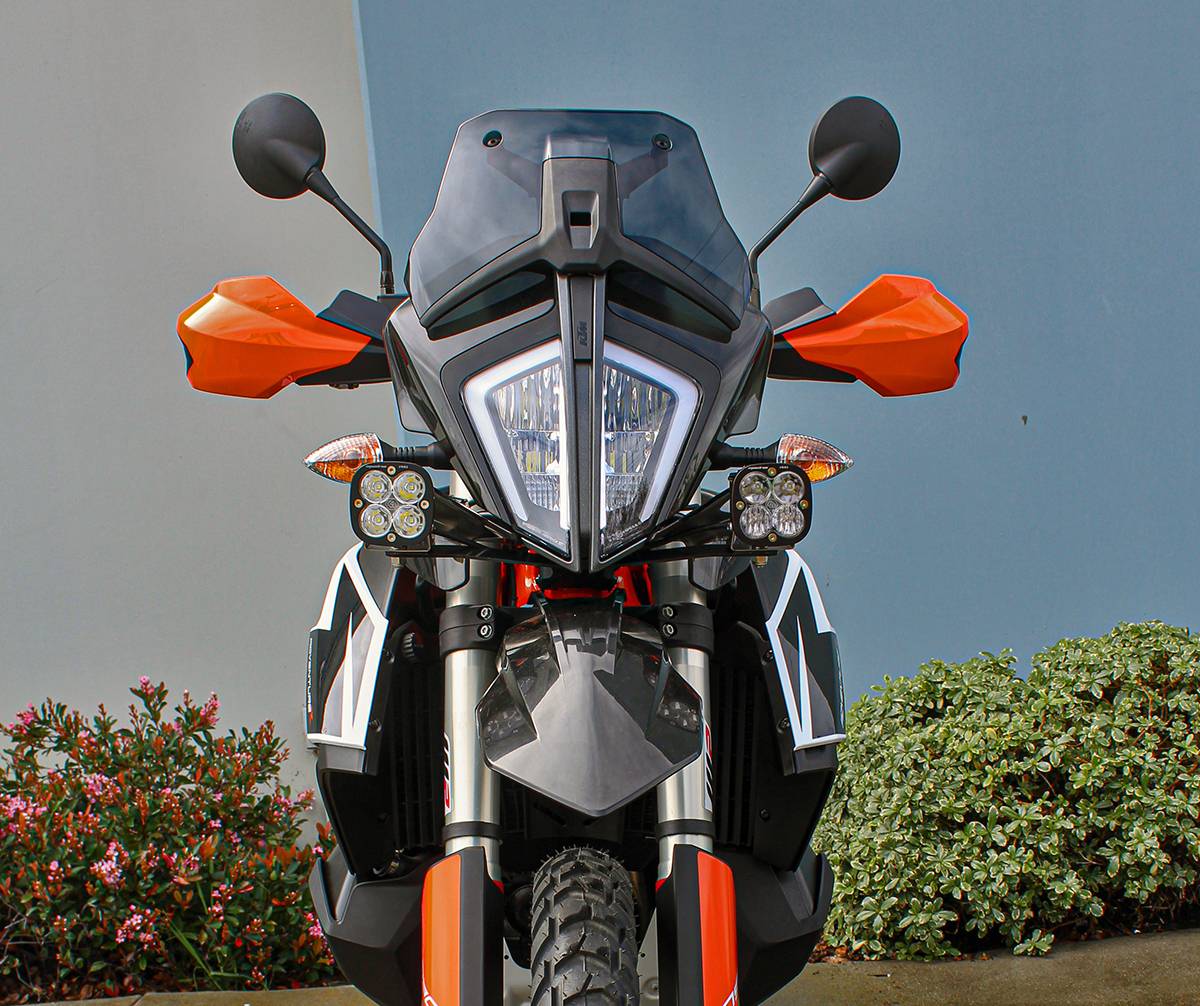

Spice your KTM 390, 790, or 890 up with a lighting kit from Baja Designs! This kit includes everything you need such as wiring, lights, bracketry, and hardware. This kit utilizes our Squadron Pro, which features a variety of Cree LEDs to provide a 20% more reach, with the same power consumption! This light is able to achieve further distances thanks to its high intensity LEDs.  Installation is a breeze, and the fitment is second to none!



Baja Designs Features: Satisfactions Guarantee – 30 Day Money Back Guarantee Limited Lifetime Warranty – Complete Purchase Protection uService® – Replaceable Lenses And Optics ClearView® – All The Light, Right Where You Need It. MoistureBlock™ – Waterproof, Rain Proof, Submersible CopperDrive® – Only LED Driven At 100% 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications (Per Light): Lumens: 4,600 Utilizing 2 types of Cree LEDs  Wattage/Amps: 40W / 2.90A Dimensions: 3.07" x 2.77" x 3.07" Weight: 12 ounces LED Life Expectancy: 49,930 Hours Front Lens: Hard Coated Polycarbonate Housing: Powder Coated Cast Aluminum Bezel: Billet Machined Aluminum Hardware & Bracket Material: Stainless Steel Exceeds MIL-STD810G (Mil-Spec Testing) Built-In Overvoltage Protection IP69K (Waterproof, Submersible to 9ft) IK10 Compliant (Mechanical Impact Testing)



Application:

• KTM 390
• KTM 790
• KTM 890

Includes:


• (1) Squadron Pro Driving / Combo LED Light
• (1) Squadron Pro Spot LED Light
• Bracketry
• Wiring Harnesses
• Hardware




Patterns:

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
